Creating an Asset in TagMatiks AT Lite

Summary:

This article explains how to create an asset in TagMatiks AT Lite.

Figure 01: Create a New Asset
1. Part Number

Before creating the asset, an admin should create an associated part number in the part master.

  • In part number field, the user needs to enter/ scan the details of the part number. T description will be auto-populated if a valid part is entered.
2. Asset Properties

Before creating the asset, an admin should create an associated part number in the part master.

  • Asset ID/Name – Asset ID and name is mandatory and the user can give their own formation.
  • Serial Number
  • Expiry Date
  • Notes
  • Location – Location is a mandatory field. This is the location where the asset is when creating the asset.

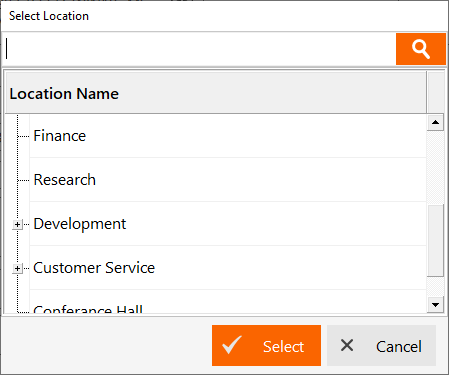

Figure 02: Location Selection

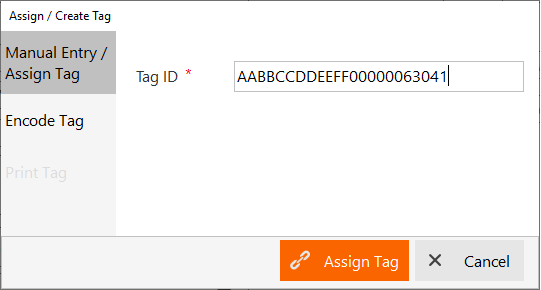

Figure 03: Assign/Create Tag
  • Tag ID – It is a mandatory field. Click on the tag ID field popup menu. There are two methods for assigning a tag one.
    • Manual Entry/ Assign Tag: scan / enter the tag id.
    • Encode Tag: Auto-Generated ID will be encoded by connecting a reader to tag.
Figure 04: Asset Custom Attributes
  • SKU & Design – These field are enabled with the help of custom attribute function. Fig 04 is the Fields which we selected in the TagMatiks AT Lite Application.
3. Asset Image
  • Optionally, add a photograph for the asset by clicking the upload button and choose the photo

– From existing Jpeg file can be directly uploaded.

– From Webcam also photo can be taken.

– To Zoom the Photo Uploaded in application.

– To Delete the photo Uploaded.
